ห้องอาบน้ำอากาศหลายคน / อุโมงค์อาบน้ำอากาศ

Product Overview

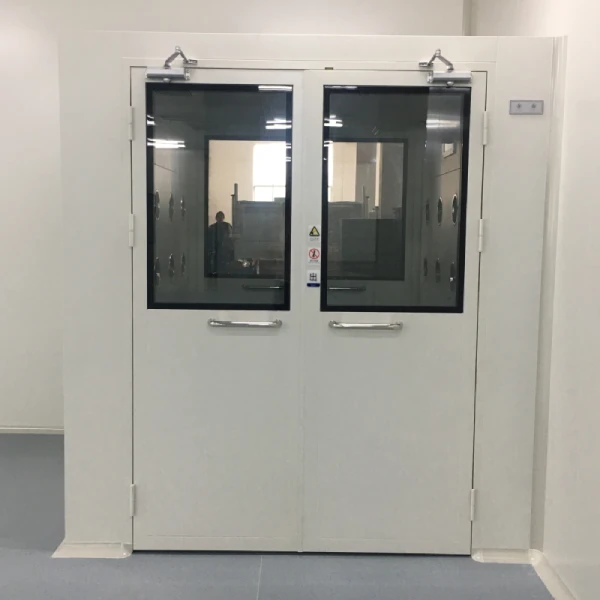

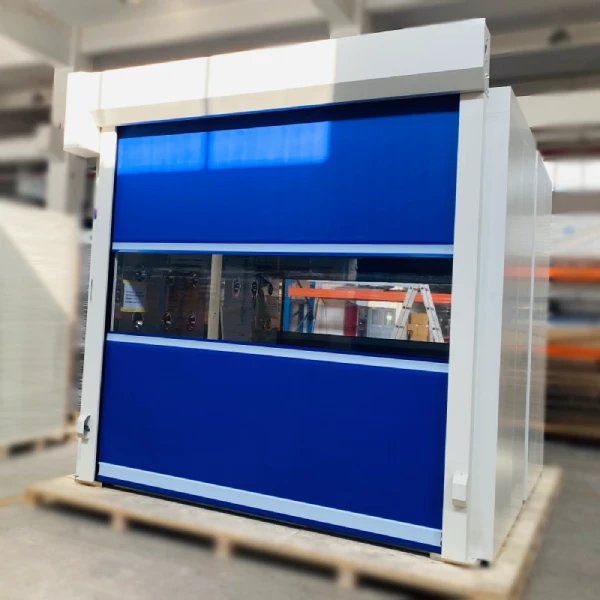

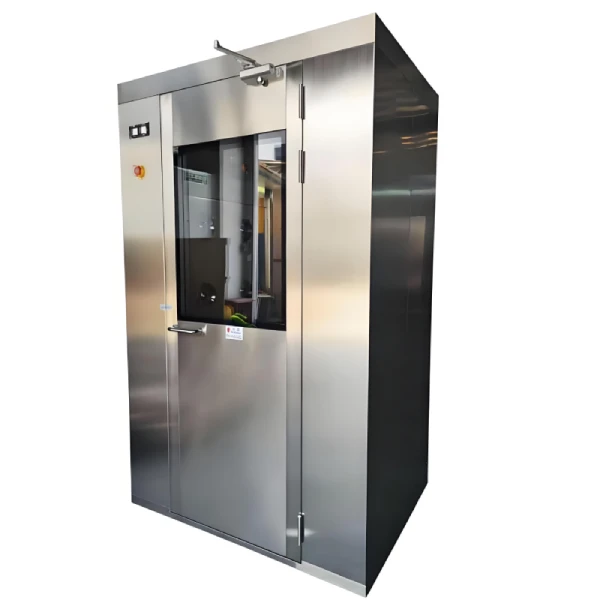

The Multi-Person Air Shower Room is a high-capacity contamination control solution designed for simultaneous use by 2 to 6 personnel or for cleaning small cargo passing into cleanrooms. It provides a high-velocity, HEPA-filtered air stream that removes particulate contamination from work garments and material surfaces before entering controlled environments (ISO 5 to ISO 8 / Grade A to C).

This unit is ideal for facilities requiring high personnel traffic without compromising cleanroom integrity.

Key Features

• Multi-User Access

  Accommodates 2–6 persons per cycle, significantly reducing entry waiting times in high-traffic cleanrooms.

• High-Efficiency Filtration

  Equipped with HEPA or ULPA filters (≥99.99% efficiency at 0.3 µm or 0.1 µm) to guarantee particle-free air jets.

• Interlocked Entry & Exit Doors

  Heavy-duty magnetic or electronic interlocks prevent both doors from opening simultaneously, ensuring unidirectional airflow and maintaining room pressure.

• Optimized Nozzle Configuration

  Strategically positioned stainless steel or ABS air nozzles on both side walls and ceiling provide complete body coverage (top-to-bottom air sweeping).

• PLC Control System with HMI

  User-friendly touchscreen or keypad interface with adjustable cycle time (10–99 seconds), emergency stop, automatic cycle start, and cycle completion alarm.

• Industrial-Grade Construction

  Manufactured from cold-rolled steel (CRS) with electrostatic powder coating or 304 stainless steel for durability and cleanroom compatibility.

• Energy-Saving Operation

  Low-noise blower with automatic standby mode and timer-controlled shutdown reduces power consumption between cycles.
